Panasonic Electronic Components

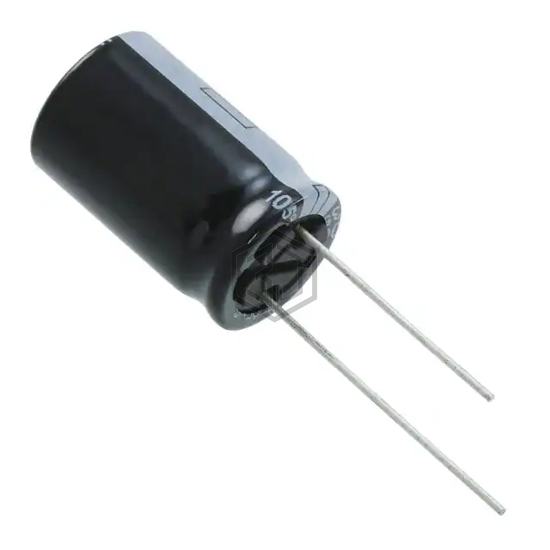

CAP ALUM 680UF 20% 80V RADIAL
EEU-FS1K681B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 4,571
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.875 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D687M063FV5D | Vishay Sprague | CAP ALUM 680UF 20% 63V RADIAL | 85% | View |
| LKX2D681MESA40 | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 76% | View |
| 250MXC680MEFCSN30X35 | Rubycon | CAP ALUM 680UF 20% 250V SNAP | 73% | View |
| MAL212018681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V AXIAL | 70% | View |
| MAL213669681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 100V RADIAL | 68% | View |
| VHT680M16 | NTE Electronics, Inc | CAP ALUM 680UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for EEU-FS1K681B and get a quote within 24 hours.
