Panasonic Electronic Components

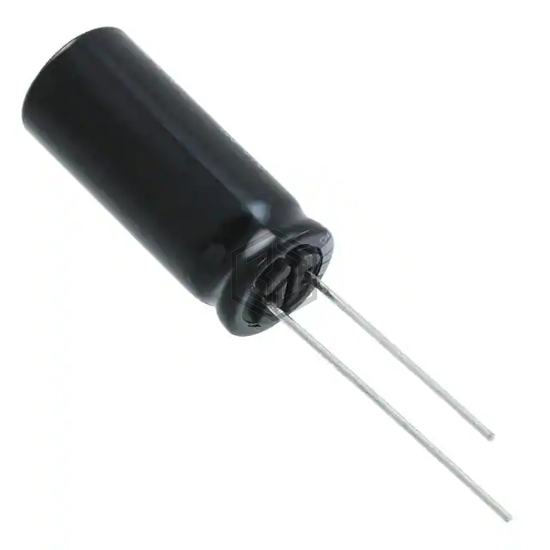

CAP ALUM 560UF 20% 80V RADIAL
EEU-FS1K561L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 1,078
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.785 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.38 A @ 100 kHz |
| Impedance | 23 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ561M200H042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 200V SNAP | 77% | View |
| 200MXC560MEFC30X25 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 76% | View |
| B43254D1567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 160V SNAP | 75% | View |
| B43254C1567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 160V SNAP | 75% | View |
| B43252D2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 75% | View |
| EKMZ451VSN561MR45S | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 72% | View |
