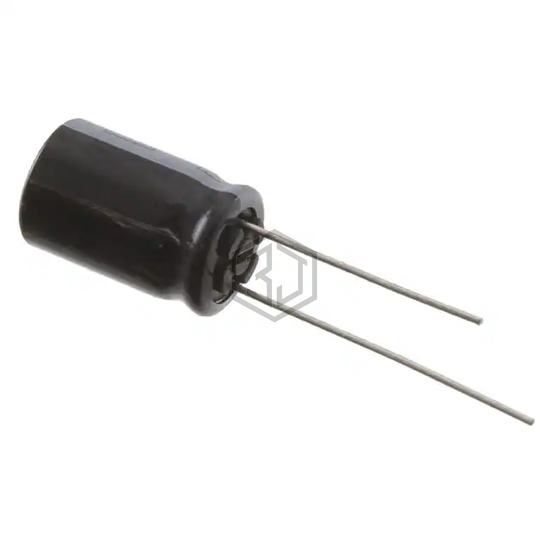

Panasonic Electronic Components
CAP ALUM 150UF 20% 80V RADIAL
EEU-FS1K151 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 150UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 1,301
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 651 mA @ 120 Hz |
| Ripple Current @ High Frequency | 930 mA @ 100 kHz |
| Impedance | 72 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80ZLH150MEFC10X20 | Rubycon | CAP ALUM 150UF 20% 80V RADIAL | 100% | View |
| LGJ2E151MELY20 | Nichicon | CAP ALUM 150UF 20% 250V SNAP | 77% | View |
| EEU-FM1H151B | Panasonic Electronic Components | CAP ALUM 150UF 20% 50V RADIAL | 71% | View |
| 381LX151M315H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 315V SNAP | 64% | View |
| UCS2D151MHD1TN | Nichicon | CAP ALUM 150UF 20% 200V RADIAL | 53% | View |
| B43504A9157M67 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 53% | View |
