Panasonic Electronic Components

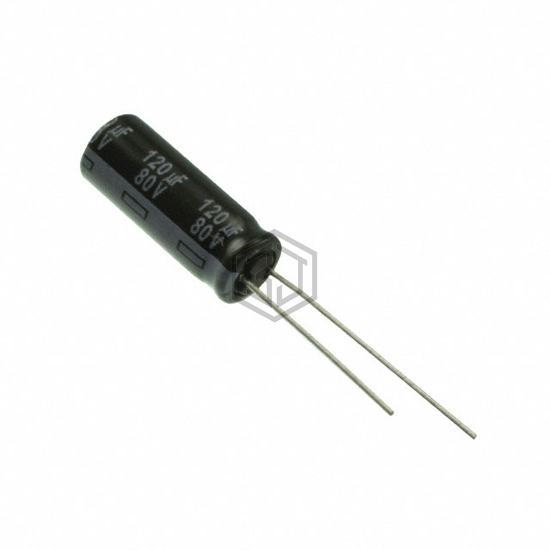

CAP ALUM 120UF 20% 80V RADIAL
EEU-FS1K121L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 120UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 4,338
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 9000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 567 mA @ 120 Hz |
| Ripple Current @ High Frequency | 810 mA @ 100 kHz |
| Impedance | 96 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50ZL120MEFCTA8X16 | Rubycon | CAP ALUM 120UF 20% 50V RADIAL | 72% | View |
| EKZE500ELL121MH15D | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 70% | View |
| MAL213658121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 63V RADIAL | 59% | View |
| 160TXW120MEFR8X50 | Rubycon | CAP ALUM 120UF 20% 160V RAD TH | 56% | View |
| LGJ2Z121MELY | Nichicon | CAP ALUM 120UF 20% 180V SNAP | 56% | View |
| 400BXW120MEFR16X35 | Rubycon | CAP ALUM 120UF 20% 400V RADIAL | 51% | View |
Submit your RFQ for EEU-FS1K121L and get a quote within 24 hours.
