Panasonic Electronic Components

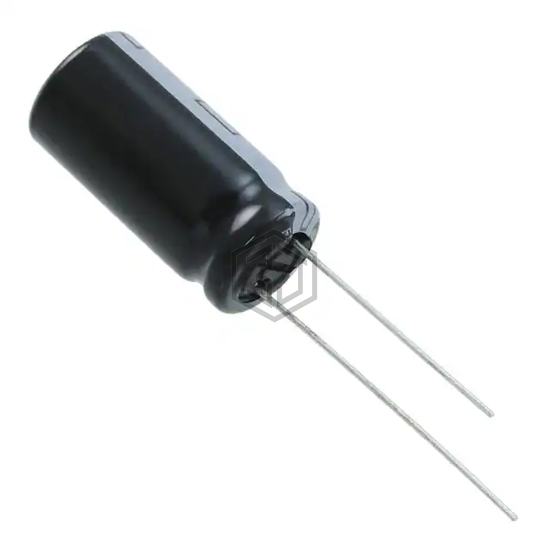

CAP ALUM 2200UF 20% 25V RADIAL
EEU-FS1E222B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.552 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.19 A @ 100 kHz |
| Impedance | 15 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1E222MHD | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 86% | View |
| EKYC500ELL222MM25S | United Chemi-Con | CAP ALUM 2200UF 20% 50V RADIAL | 77% | View |
| 100VXG2200MEFC35X35 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 76% | View |
| 16YXG2200MEFCT810X28 | Rubycon | CAP ALUM 2200UF 20% 16V RADIAL | 71% | View |
| 381LX222M063J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 63V SNAP | 65% | View |
| MAL215872222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 80V SNAP | 59% | View |
