Panasonic Electronic Components
CAP ALUM 5600UF 20% 10V RADIAL

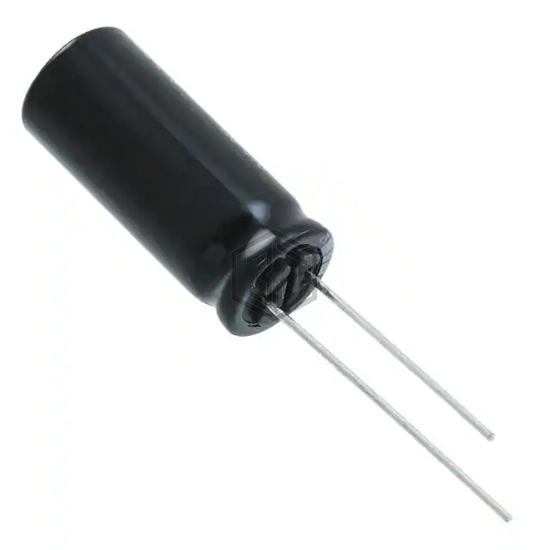

EEU-FS1A562L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,189
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.904 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.63 A @ 100 kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH630VQT562MB25U | United Chemi-Con | CAP ALUM 5600UF 20% 63V SNAP | 88% | View |
| EKYC160ELL562MK30S | United Chemi-Con | CAP ALUM 5600UF 20% 16V RADIAL | 80% | View |
| 25YXG5600MEFCGC18X40 | Rubycon | CAP ALUM 5600UF 20% 25V RADIAL | 77% | View |
| MAL214655562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 16V RADIAL | 75% | View |
| EGPA250ELL562MM35S | United Chemi-Con | CAP ALUM 5600UF 20% 25V RADIAL | 75% | View |
| ELBG250ELL562ALN3S | United Chemi-Con | CAP ALUM 5600UF 25V RADIAL | 69% | View |
Submit your RFQ for EEU-FS1A562L and get a quote within 24 hours.
