Panasonic Electronic Components

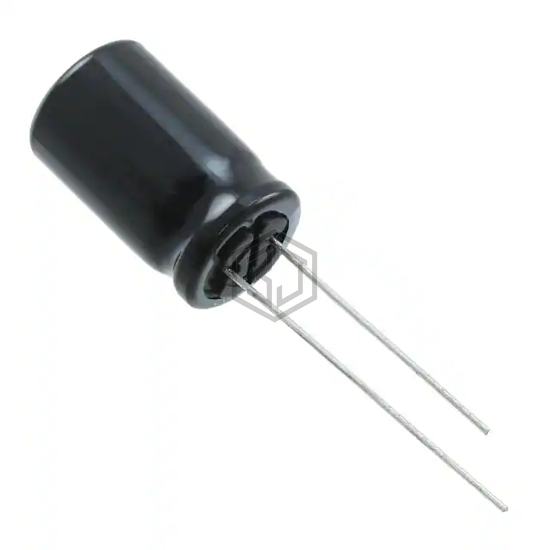

CAP ALUM 3600UF 20% 10V RADIAL
EEU-FS1A362 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3600UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FS1A362B | Panasonic Electronic Components | CAP ALUM 3600UF 20% 10V RADIAL | 100% | View |
| EKYC250ELL362ML20S | United Chemi-Con | CAP ALUM 3600UF 20% 25V RADIAL | 76% | View |
| ELBG350ETS362AM25S | United Chemi-Con | CAP ALUM 3600UF 35V RADIAL | 74% | View |
| THAS352M025AA1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 3500UF 20% 25V FLATPACK | 73% | View |
| EEU-FS1C362L | Panasonic Electronic Components | CAP ALUM 3600UF 20% 16V RADIAL | 70% | View |
| UBY1H362MHL | Nichicon | CAP ALUM 3600UF 20% 50V RADIAL | 64% | View |
Submit your RFQ for EEU-FS1A362 and get a quote within 24 hours.
