Panasonic Electronic Components

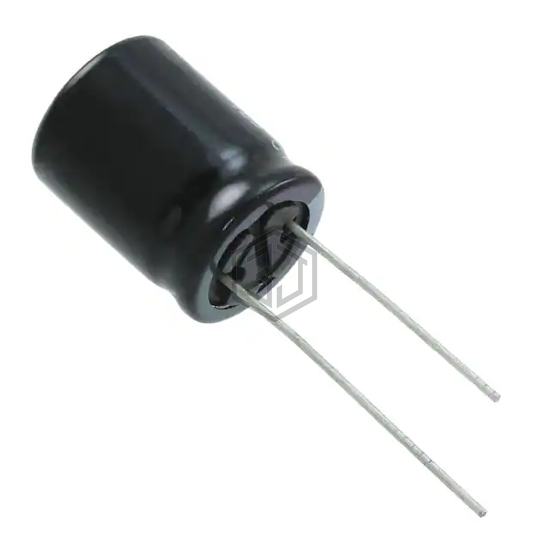

CAP ALUM 7500UF 20% 6.3V RADIAL
EEU-FS0J752SB is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 7500UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 7500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.64 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.3 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FS0J752S | Panasonic Electronic Components | CAP ALUM 7500UF 20% 6.3V RADIAL | 100% | View |
| EEU-FS0J752L | Panasonic Electronic Components | CAP ALUM 7500UF 20% 6.3V RADIAL | 90% | View |
| 604D752F7R5HT7 | Vishay Sprague | CAP ALUM 7500UF 7.5V AXIAL | 89% | View |
| EKYC160ELL752ML25S | United Chemi-Con | CAP ALUM 7500UF 20% 16V RADIAL | 78% | View |
| EGPD250ELL752MM30H | United Chemi-Con | CAP ALUM 7500UF 20% 25V RADIAL | 75% | View |
| THAS782M025AD0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 7800UF 20% 25V FLATPACK | 73% | View |
