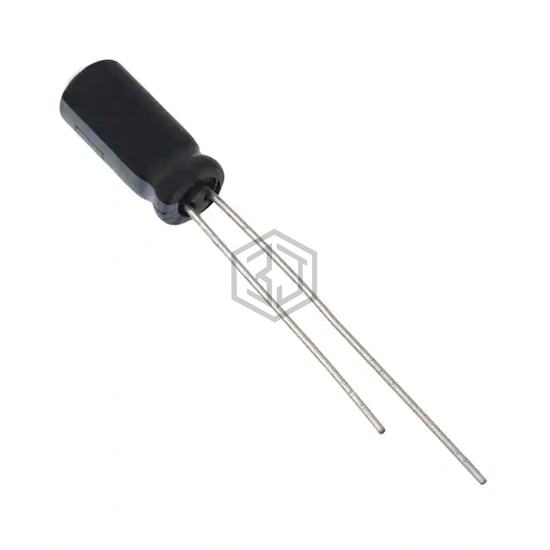

Panasonic Electronic Components
CAP ALUM 68UF 20% 16V RADIAL
EEU-FR1C680B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,218
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 196 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860240373003 | Würth Elektronik | CAP ALUM 68UF 20% 16V RADIAL | 76% | View |
| USF1C680MDD1TE | Nichicon | CAP ALUM 68UF 20% 16V RADIAL | 76% | View |
| UBX1J680MPL1TD | Nichicon | CAP ALUM 68UF 20% 63V RADIAL | 54% | View |
| URZ2C680MHD6TN | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 53% | View |
| URZ2D680MHD | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 53% | View |
| 100ZLH68MEFC8X20 | Rubycon | CAP ALUM 68UF 20% 100V RADIAL | 52% | View |
Submit your RFQ for EEU-FR1C680B and get a quote within 24 hours.
