Panasonic Electronic Components

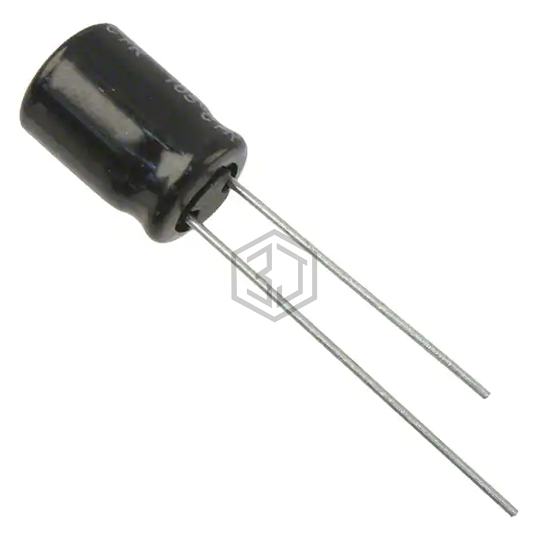

CAP ALUM 470UF 20% 16V RADIAL
EEU-FR1C471 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,264
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 712.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | 56 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ED1E471MP50816E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 81% | View |
| 16RX30470MT810X12.5 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 73% | View |
| EGXE350ELL471MK20S | United Chemi-Con | CAP ALUM 470UF 20% 35V RADIAL | 73% | View |
| MAL214268471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 68% | View |
| EEU-TA1A471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V RADIAL | 67% | View |
| 477KXM063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 63V RADIAL | 60% | View |
Submit your RFQ for EEU-FR1C471 and get a quote within 24 hours.
