Panasonic Electronic Components

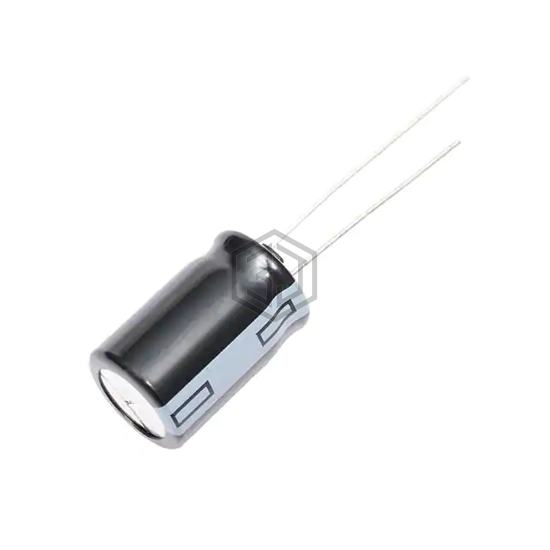

CAP ALUM 1000UF 20% 25V RADIAL
EEU-FP1E102 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,463
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 52mOhm @ 100kHz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.95 A @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY250EC3102MK20S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 100% | View |
| B41789K5108Q001 | EPCOS - TDK Electronics | CAP ALUM 1000UF 25V RADIAL | 94% | View |
| UPW1E102MHD1TO | Nichicon | CAP ALUM 1000UF 20% 25V RADIAL | 75% | View |
| MAL216035102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 71% | View |
| MAL216050102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 56% | View |
| MAL219091105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for EEU-FP1E102 and get a quote within 24 hours.
