Panasonic Electronic Components
CAP ALUM 820UF 20% 50V RADIAL

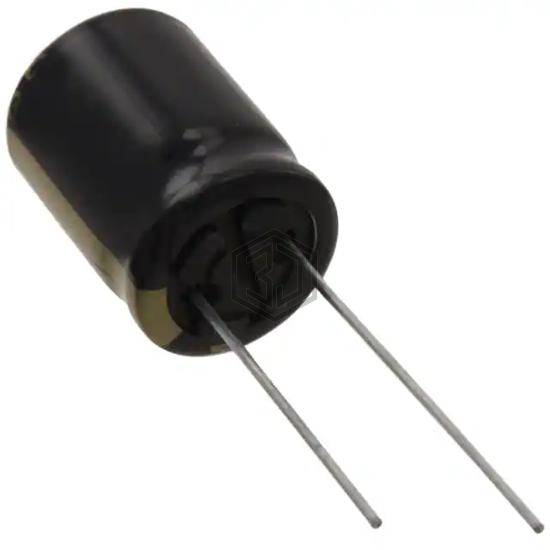

EEU-FM1H821S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,940
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.153 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.87 A @ 100 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPD500ELL821MK25H | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 95% | View |
| EKZE500ETD821ML20S | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 91% | View |
| KY50VB821M12X35LL | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 86% | View |
| 860080780027 | Würth Elektronik | CAP ALUM 820UF 20% 63V RADIAL | 82% | View |
| LGG2E821MELC30 | Nichicon | CAP ALUM 820UF 20% 250V SNAP | 76% | View |
| EEU-TP1V821B | Panasonic Electronic Components | CAP ALUM 820UF 20% 35V RADIAL | 71% | View |
Submit your RFQ for EEU-FM1H821S and get a quote within 24 hours.
