Panasonic Electronic Components

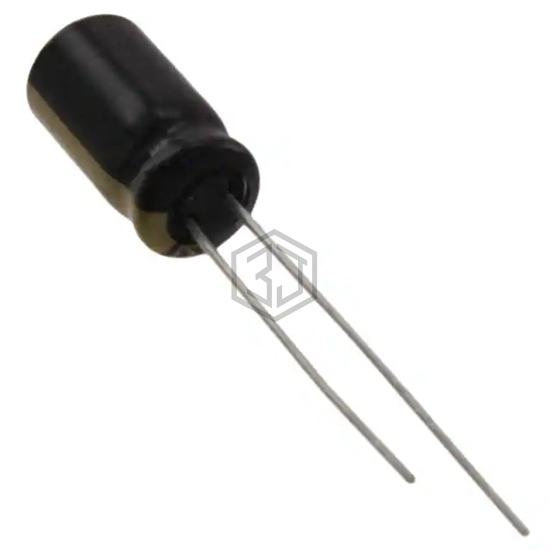

CAP ALUM 56UF 20% 50V RADIAL
EEU-FM1H560 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 56UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 3,240
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 283.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 405 mA @ 100 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50ZLJ56M6.3X11 | Rubycon | CAP ALUM 56UF 20% 50V RADIAL | 87% | View |
| 35ZT56MT16.3X11 | Rubycon | CAP ALUM 56UF 20% 35V RADIAL | 67% | View |
| 601D566F150GE1 | Vishay Sprague | CAP ALUM 56UF 150V AXIAL | 61% | View |
| UCY2C560MPD1TD | Nichicon | CAP ALUM 56UF 20% 160V RADIAL | 57% | View |
| 400CXW56MEFR18X20 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 56% | View |
| 63YXG56MEFCTA8X11.5 | Rubycon | CAP ALUM 56UF 20% 63V RADIAL | 50% | View |
Submit your RFQ for EEU-FM1H560 and get a quote within 24 hours.
