Panasonic Electronic Components

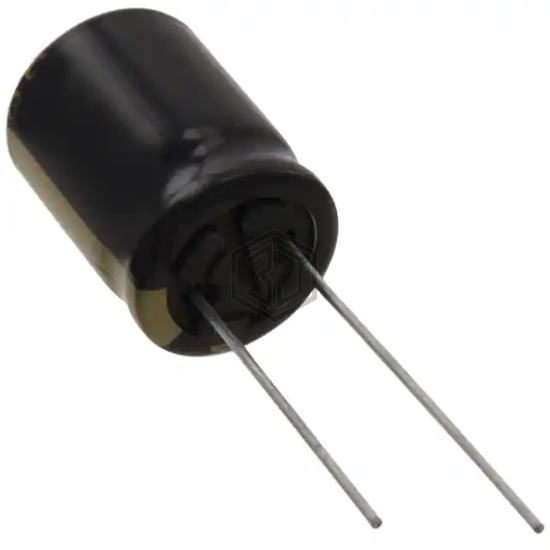

CAP ALUM 2700UF 20% 25V RADIAL
EEU-FM1E272B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2700UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,872
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.056 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.82 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZH250ELL272MK35S | Chemi-Con | CAP ALUM 25V POLAR | 94% | View |
| 757D278M025EN3D | Vishay Sprague | CAP ALUM 2700UF 20% 25V RADIAL | 86% | View |
| EKZN160ELL272MK25S | United Chemi-Con | CAP ALUM 2700UF 20% 16V RADIAL | 76% | View |
| UBY1H272MHL | Nichicon | CAP ALUM 2700UF 20% 50V RADIAL | 72% | View |
| EEU-FC1C272L | Panasonic Electronic Components | CAP ALUM 2700UF 20% 16V RADIAL | 62% | View |
| EEU-FS0J272B | Panasonic Electronic Components | CAP ALUM 2700UF 20% 6.3V RADIAL | 54% | View |
Submit your RFQ for EEU-FM1E272B and get a quote within 24 hours.
