Panasonic Electronic Components
CAP ALUM 560UF 20% 6.3V RADIAL

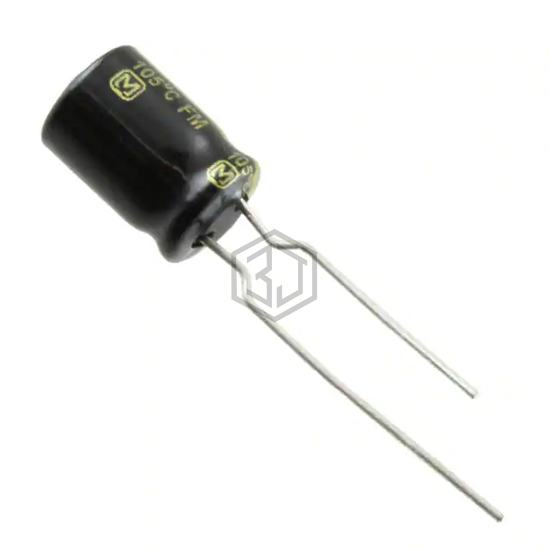

EEU-FM0J561BJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 712.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | 56 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC0J561BJ | Panasonic Electronic Components | CAP ALUM 560UF 20% 6.3V RADIAL | 74% | View |
| MAL213660561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 35V RADIAL | 71% | View |
| EEU-FC1E561 | Panasonic Electronic Components | CAP ALUM 560UF 20% 25V RADIAL | 71% | View |
| 25YXS560MEFC8X20 | Rubycon | CAP ALUM 560UF 20% 25V RADIAL | 62% | View |
| B43640B5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 56% | View |
| ELXG251VNN561MR40U | United Chemi-Con | CAP ALUM 560UF 20% 250V SNAP | 56% | View |
