Panasonic Electronic Components

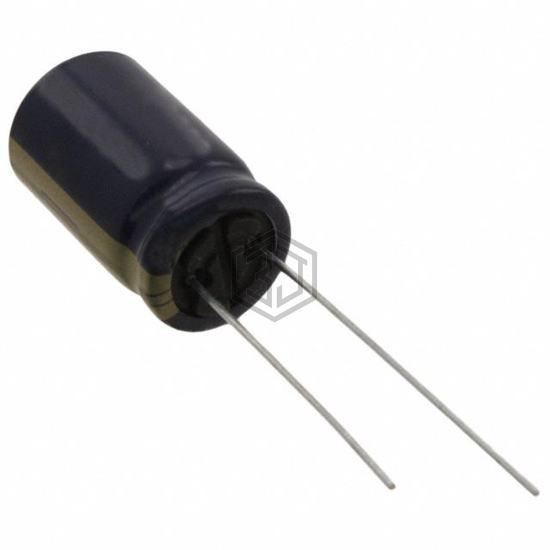

CAP ALUM 68UF 20% 100V RADIAL
EEU-FC2A680Y is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8,232
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 332.2 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 230 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX2A680MHL1TO | Nichicon | CAP ALUM 68UF 20% 100V RADIAL | 96% | View |
| UBX2A680MHL | Nichicon | CAP ALUM 68UF 20% 100V RADIAL | 96% | View |
| MAL213639689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 100V RADIAL | 83% | View |
| ELXV630ETD680MJ16S | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 67% | View |
| MAL214668689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 63V RADIAL | 64% | View |
| 672D686H020CD5C | Vishay Sprague | CAP ALUM 68UF 20V RADIAL | 56% | View |
Submit your RFQ for EEU-FC2A680Y and get a quote within 24 hours.
