Panasonic Electronic Components

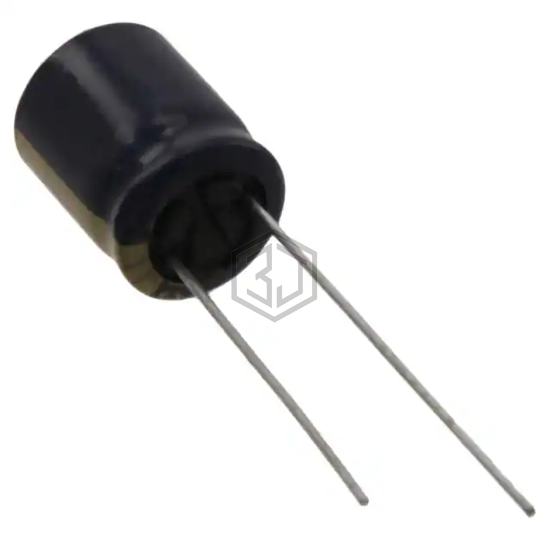

CAP ALUM 39UF 20% 100V RADIAL
EEU-FC2A390B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 39UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,838
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 400 mA @ 100 kHz |
| Impedance | 360 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2A390MPD6 | Nichicon | CAP ALUM 39UF 20% 100V RADIAL | 90% | View |
| UPM1K390MPD6 | Nichicon | CAP ALUM 39UF 20% 80V RADIAL | 85% | View |
| ELXV800ELL390MJC5S | Chemi-Con | CAP ALUM 33UF 20% 80V RADIAL TH | 76% | View |
| UPM1J390MED1TD | Nichicon | CAP ALUM 39UF 20% 63V RADIAL | 75% | View |
| UPM1J390MED1TA | Nichicon | CAP ALUM 39UF 20% 63V RADIAL | 75% | View |
| 672D396H040CC5C | Vishay Sprague | CAP ALUM 39UF 40V RADIAL | 56% | View |
Submit your RFQ for EEU-FC2A390B and get a quote within 24 hours.
