Panasonic Electronic Components

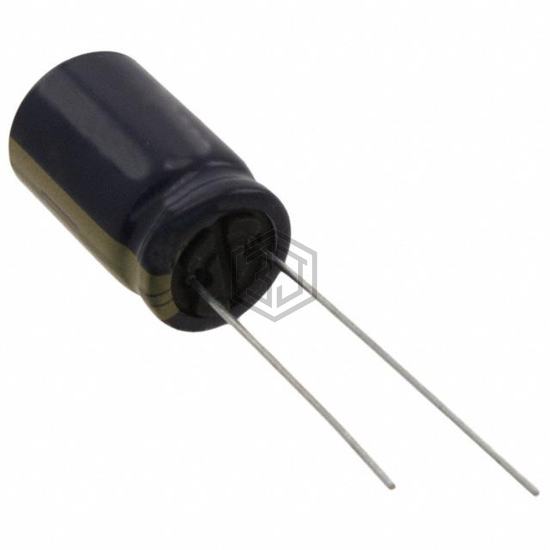

CAP ALUM 180UF 20% 100V RADIAL
EEU-FC2A181L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 609.1 mA @ 120 Hz |
| Ripple Current @ High Frequency | 937 mA @ 100 kHz |
| Impedance | 98 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A181 | Panasonic Electronic Components | CAP ALUM 180UF 20% 100V RADIAL | 96% | View |
| UPM1K181MHD1TO | Nichicon | CAP ALUM 180UF 20% 80V RADIAL | 85% | View |
| EEU-FC1J181S | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 79% | View |
| RF1K181MP51020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 79% | View |
| UPA1V181MPD1TD | Nichicon | CAP ALUM 180UF 20% 35V RADIAL | 64% | View |
| 672D187H040DM3C | Vishay Sprague | CAP ALUM 180UF 40V RADIAL | 56% | View |
Submit your RFQ for EEU-FC2A181L and get a quote within 24 hours.
