Panasonic Electronic Components

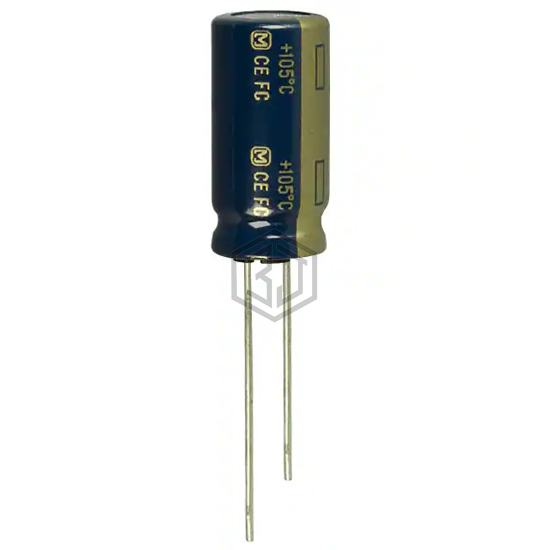

CAP ALUM 820UF 20% 35V RADIAL
EEU-FC1V821L is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 73
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.459 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.945 A @ 100 kHz |
| Impedance | 30 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080475019 | Würth Elektronik | CAP ALUM 820UF 20% 25V RADIAL | 87% | View |
| UPA1E821MPD | Nichicon | CAP ALUM 820UF 20% 25V RADIAL | 78% | View |
| 827KXM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 820UF 20% 25V RADIAL | 77% | View |
| MAL214668821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 63V RADIAL | 75% | View |
| B41888C8827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 63V RADIAL | 72% | View |
| MAL224631821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V RADIAL | 70% | View |
Submit your RFQ for EEU-FC1V821L and get a quote within 24 hours.
