Panasonic Electronic Components

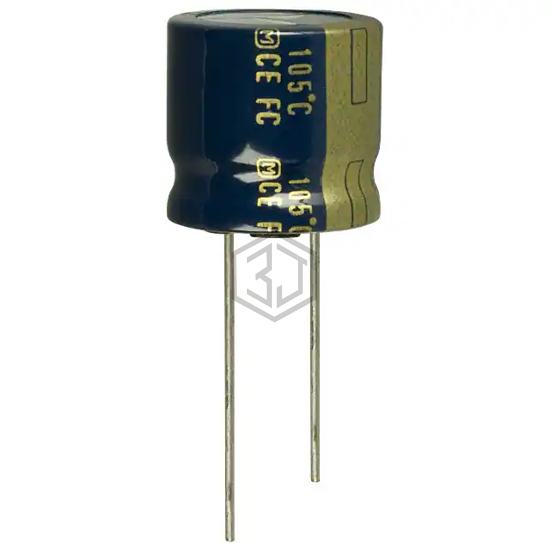

CAP ALUM 820UF 20% 35V RADIAL
EEU-FC1V821 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,814
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | 38 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1V821MHD | Nichicon | CAP ALUM 820UF 20% 35V RADIAL | 94% | View |
| EEU-FK1E821B | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V RADIAL TH | 78% | View |
| MAL224651821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V RADIAL | 72% | View |
| ELXY250ELL821MJ30S | United Chemi-Con | CAP ALUM 820UF 20% 25V RADIAL | 71% | View |
| B41789K7827Q001 | EPCOS - TDK Electronics | CAP ALUM 820UF 40V RADIAL | 68% | View |
| MAL213668821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 63V RADIAL | 67% | View |
