Panasonic Electronic Components

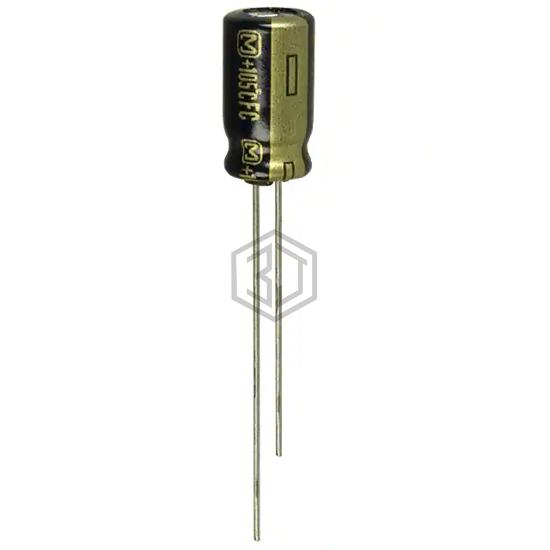

CAP ALUM 68UF 20% 35V RADIAL
EEU-FC1V680 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 337
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 188.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 290 mA @ 100 kHz |
| Impedance | 350 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212310689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 35V AXIAL | 81% | View |
| UVY1V680MED1TD | Nichicon | CAP ALUM 68UF 20% 35V RADIAL | 80% | View |
| UVY1V680MED | Nichicon | CAP ALUM 68UF 20% 35V RADIAL | 80% | View |
| 686KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 68UF 20% 35V RADIAL | 76% | View |
| 672D686F060DM5J | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 65% | View |
| EEU-FC2A680B | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V RADIAL | 53% | View |
Submit your RFQ for EEU-FC1V680 and get a quote within 24 hours.
