Panasonic Electronic Components

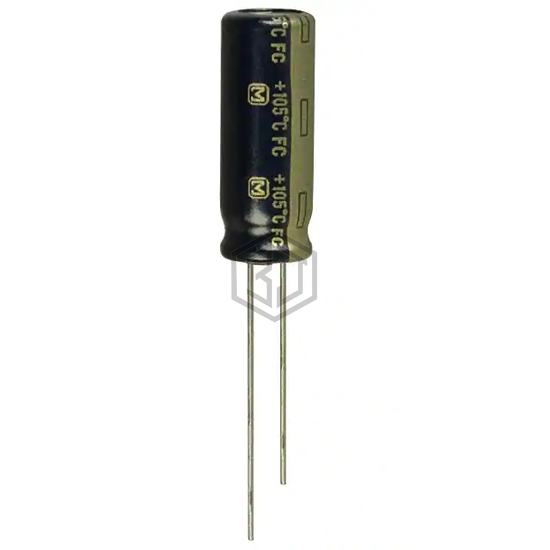

CAP ALUM 120UF 20% 35V RADIAL
EEU-FC1V121BJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 120UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,941
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 360.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 117 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213660121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 35V RADIAL | 96% | View |
| 860080675011 | Würth Elektronik | CAP ALUM 120UF 20% 50V RADIAL | 72% | View |
| 860080775015 | Würth Elektronik | CAP ALUM 120UF 20% 63V RADIAL | 69% | View |
| 860080774014 | Würth Elektronik | CAP ALUM 120UF 20% 63V RADIAL | 68% | View |
| ELXV630ELL121MJ20S | United Chemi-Con | CAP ALUM 120UF 20% 63V RADIAL | 63% | View |
| ELXV250ETC121MF15D | United Chemi-Con | CAP ALUM 120UF 20% 25V RADIAL | 57% | View |
Submit your RFQ for EEU-FC1V121BJ and get a quote within 24 hours.
