Panasonic Electronic Components

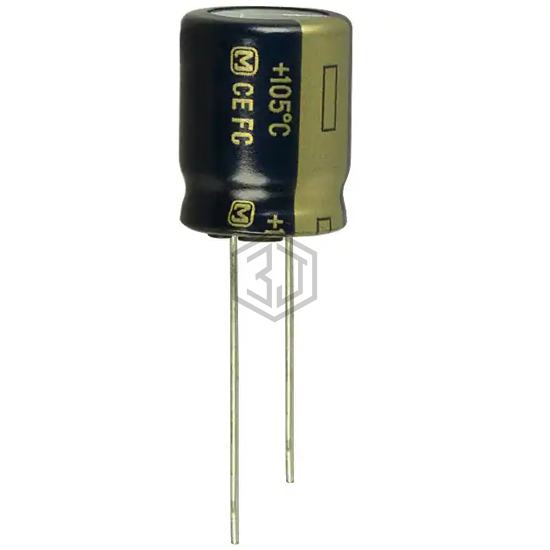

CAP ALUM 1000UF 20% 35V RADIAL
EEU-FC1V102S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,405
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.654 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | 29 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW102M1VBK-1325S | SURGE | CAP ALUM 1000UF 20% 35V RADIAL | 96% | View |
| MAL219050102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 96% | View |
| MAL215050102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 93% | View |
| B41866C7108M009 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 35V RADIAL | 88% | View |
| EG1H102MNN1625EF8 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 83% | View |
| ELXY250ETD102MK25S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 74% | View |
