Panasonic Electronic Components

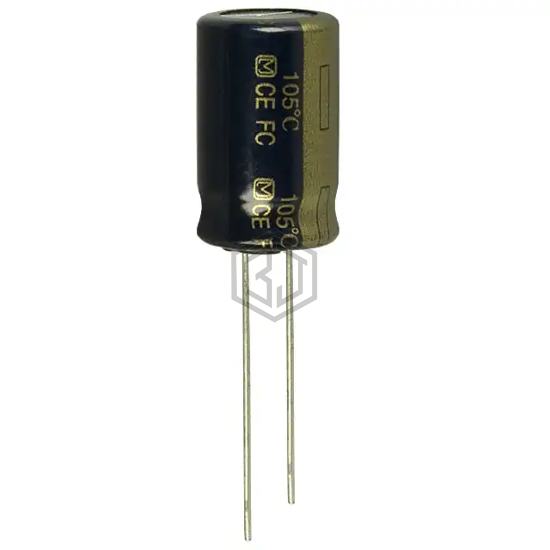

CAP ALUM 390UF 20% 50V RADIAL
EEU-FC1H391 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,446
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.11 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.48 A @ 100 kHz |
| Impedance | 63 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1H391MHD | Nichicon | CAP ALUM 390UF 20% 50V RADIAL | 100% | View |
| 672D397H040DS2C | Vishay Sprague | CAP ALUM 390UF 40V RADIAL | 86% | View |
| B41890A7397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 35V RADIAL | 80% | View |
| UPJ1K391MHH6 | Nichicon | CAP ALUM 390UF 20% 80V RADIAL | 74% | View |
| ELXV101ELL391MM30S | United Chemi-Con | CAP ALUM 390UF 20% 100V RADIAL | 72% | View |
| 600D397F040DX5 | Vishay Sprague | CAP ALUM 390UF 40V AXIAL | 57% | View |
