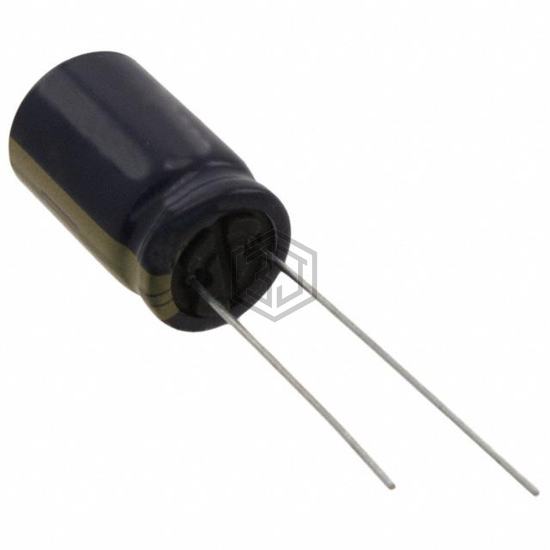

Panasonic Electronic Components
CAP ALUM 330UF 20% 50V RADIAL
EEU-FC1H331B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,331
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 962 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.48 A @ 100 kHz |
| Impedance | 63 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1H331MPD6 | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 96% | View |
| RXK331M1HBK-1320S | SURGE | CAP ALUM 330UF 20% 50V RADIAL | 92% | View |
| MAL211828331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V AXIAL | 67% | View |
| 600D337M030DL4 | Vishay Sprague | CAP ALUM 330UF 30V AXIAL | 67% | View |
| UVY1H331MHD4 | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 59% | View |
| 601D337F150HP3 | Vishay Sprague | CAP ALUM 330UF 150V AXIAL | 57% | View |
