Panasonic Electronic Components

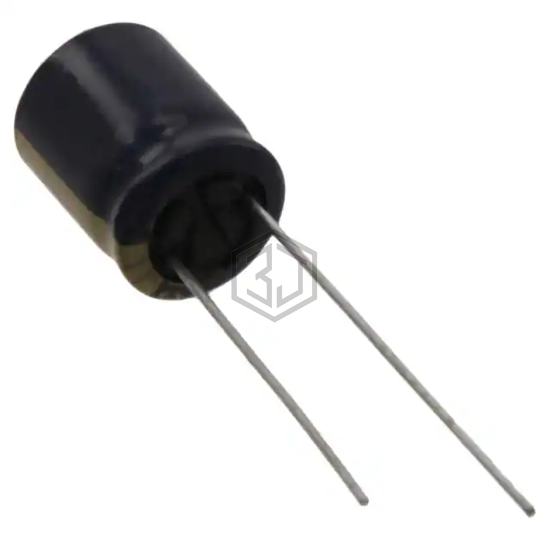

CAP ALUM 270UF 20% 50V RADIAL
EEU-FC1H271B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,087
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 780 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | 82 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D277G050FJ3 | Vishay Sprague | CAP ALUM 270UF 50V AXIAL | 100% | View |
| UPJ1J271MHD6TN | Nichicon | CAP ALUM 270UF 20% 63V RADIAL | 87% | View |
| ELXV101ELL271MK40S | United Chemi-Con | CAP ALUM 270UF 20% 100V RADIAL | 65% | View |
| ELXV160ETD271MJC5S | United Chemi-Con | CAP ALUM 270UF 20% 16V RADIAL | 62% | View |
| B41689K8277Q001 | EPCOS - TDK Electronics | CAP ALUM 270UF 63V AXIAL | 61% | View |
| MAL213635271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 16V RADIAL | 52% | View |
