Panasonic Electronic Components
CAP ALUM 1000UF 20% 50V RADIAL

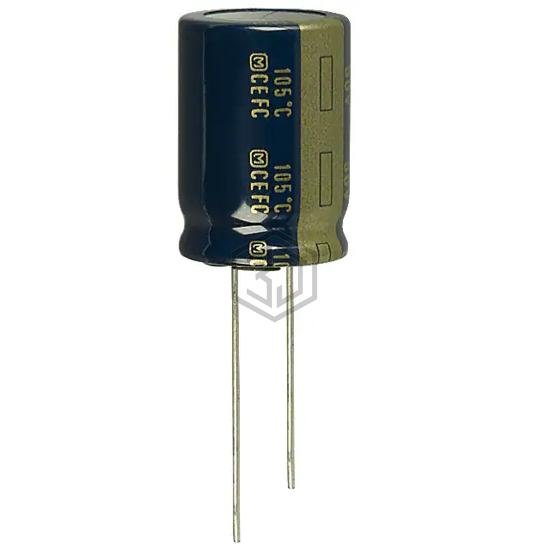

EEU-FC1H102 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,378
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.676 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.235 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D108M050FV3D | Vishay Sprague | CAP ALUM 1000UF 20% 50V RADIAL | 96% | View |
| ELXY350ELL102MK30S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 79% | View |
| B41888C7108M8 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 35V RADIAL | 78% | View |
| MAL214031102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 77% | View |
| 63PX1000MEFC16X25 | Rubycon | CAP ALUM 1000UF 20% 63V RADIAL | 74% | View |
| UBW1E102MHD1TO | Nichicon | CAP ALUM 1000UF 20% 25V RADIAL | 69% | View |
Submit your RFQ for EEU-FC1H102 and get a quote within 24 hours.
