Panasonic Electronic Components

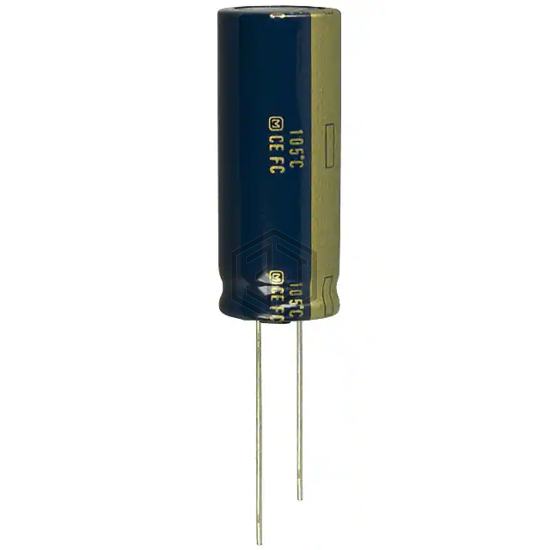

CAP ALUM 5600UF 20% 25V RADIAL
EEU-FC1E562 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,513
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 3.175 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.735 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214656562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 25V RADIAL | 90% | View |
| RXW562M1CBK-1832S | Surge | CAP ALUM 16V POLAR | 82% | View |
| RZW562M1CBK-1636S | Surge | CAP ALUM 16V POLAR | 82% | View |
| UPW1C562MHH | Nichicon | CAP ALUM 5600UF 20% 16V RADIAL | 80% | View |
| EEU-FC1A562 | Panasonic Electronic Components | CAP ALUM 5600UF 20% 10V RADIAL | 61% | View |
| ELXV6R3ELL562MK40S | United Chemi-Con | CAP ALUM 5600UF 20% 6.3V RADIAL | 54% | View |
