Panasonic Electronic Components
CAP ALUM 1200UF 20% 25V RADIAL

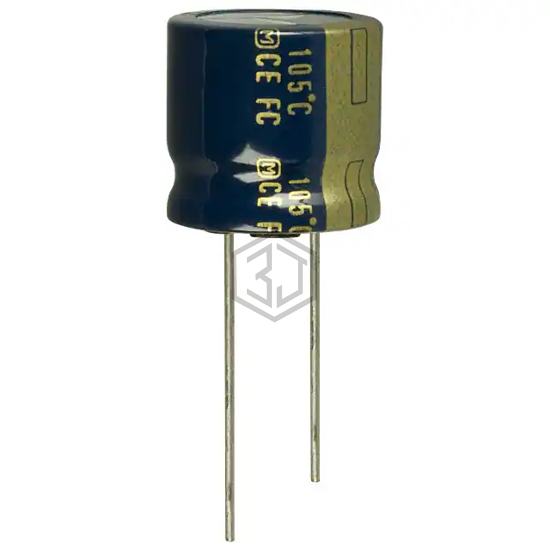

EEU-FC1E122S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,059
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | 38 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1E122MHD1TO | Nichicon | CAP ALUM 1200UF 20% 25V RADIAL | 95% | View |
| B41689A5128Q001 | EPCOS - TDK Electronics | CAP ALUM 1200UF 25V AXIAL | 79% | View |
| ELXV160ETD122MJ30S | United Chemi-Con | CAP ALUM 1200UF 20% 16V RADIAL | 69% | View |
| EEU-FC1H122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 50V RADIAL | 66% | View |
| UPA1A122MPD6 | Nichicon | CAP ALUM 1200UF 20% 10V RADIAL | 60% | View |
| B41890A6128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 50V RADIAL | 56% | View |
