Panasonic Electronic Components

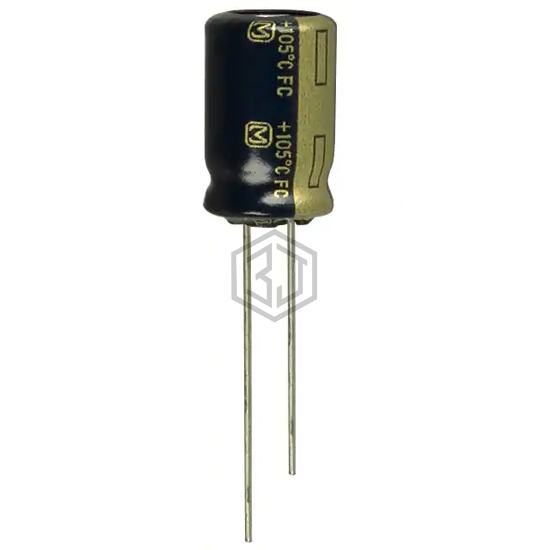

CAP ALUM 680UF 20% 16V RADIAL
EEU-FC1C681 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,258
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 787.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV160ELL681MJ20S | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 96% | View |
| MAL213665681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 93% | View |
| MAL216065681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 88% | View |
| 860160475025 | Würth Elektronik | CAP ALUM 680UF 20% 25V RADIAL | 74% | View |
| 50WXA680MEFC16X16 | Rubycon | CAP ALUM 680UF 20% 50V RADIAL | 71% | View |
| MAL213630681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 63% | View |
Submit your RFQ for EEU-FC1C681 and get a quote within 24 hours.
