Panasonic Electronic Components

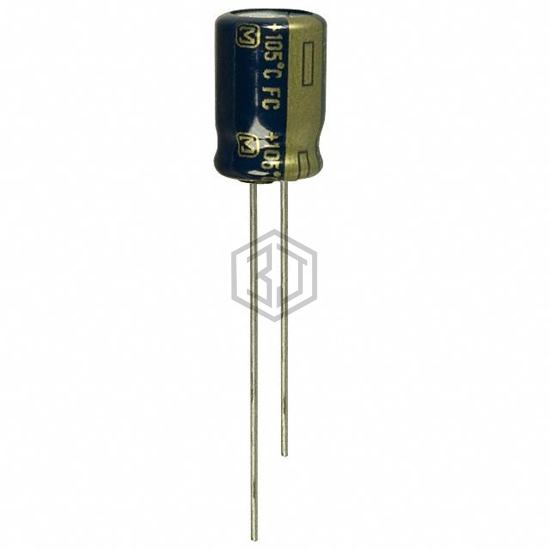

CAP ALUM 270UF 20% 16V RADIAL
EEU-FC1C271 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,526
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 360.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 100 kHz |
| Impedance | 117 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1E271MPD | Nichicon | CAP ALUM 270UF 20% 25V RADIAL | 77% | View |
| 672D277H025DM5C | Vishay Sprague | CAP ALUM 270UF 25V RADIAL | 71% | View |
| MAL213638271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 63V RADIAL | 65% | View |
| B41890A5277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 25V RADIAL | 64% | View |
| 860080474011 | Würth Elektronik | CAP ALUM 270UF 20% 25V RADIAL | 63% | View |
| 672D277H075FV5J | Vishay Sprague | CAP ALUM 270UF 75V RADIAL | 56% | View |
