Panasonic Electronic Components

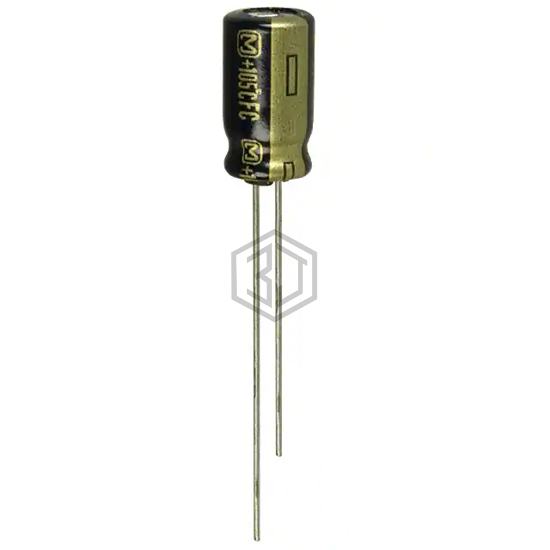

CAP ALUM 180UF 20% 10V RADIAL
EEU-FC1A181 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,767
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 188.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 290 mA @ 100 kHz |
| Impedance | 350 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.441" (11.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1A181MED1TD | Nichicon | CAP ALUM 180UF 20% 10V RADIAL | 96% | View |
| UPW1A181MEH | Nichicon | CAP ALUM 180UF 20% 10V RADIAL | 96% | View |
| 860080273006 | Würth Elektronik | CAP ALUM 180UF 20% 10V RADIAL | 88% | View |
| 672D187H050DS5C | Vishay Sprague | CAP ALUM 180UF 50V RADIAL | 56% | View |
| 672D187H050DM5C | Vishay Sprague | CAP ALUM 180UF 50V RADIAL | 56% | View |
| 672D187F100FV4D | Vishay Sprague | CAP ALUM 180UF 100V RADIAL | 56% | View |
