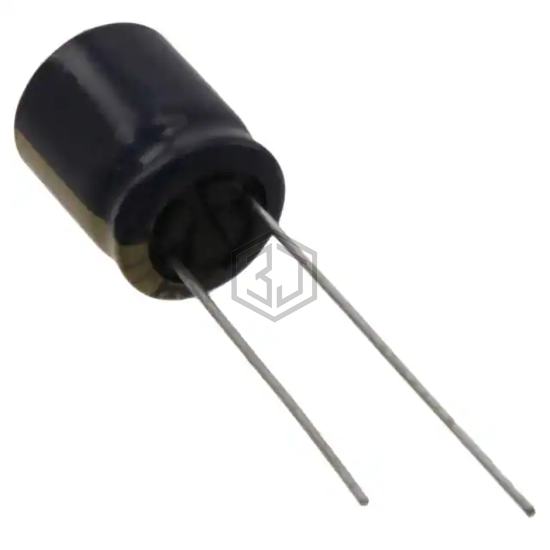

Panasonic Electronic Components
CAP ALUM 1000UF 20% 10V RADIAL
EEU-FC1A102LJ is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,123
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 746.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 65 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-HD1A102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V RADIAL | 84% | View |
| UPA0J102MPD | Nichicon | CAP ALUM 1000UF 20% 6.3V RADIAL | 80% | View |
| 16PX1000MEFCT810X12.5 | Rubycon | CAP ALUM 1000UF 20% 16V RADIAL | 76% | View |
| EEU-FK1C102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RAD TH | 74% | View |
| ECA-1HHG102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V RADIAL | 64% | View |
| 672D108F015ET3D | Vishay Sprague | CAP ALUM 1000UF 15V RADIAL | 57% | View |
Submit your RFQ for EEU-FC1A102LJ and get a quote within 24 hours.
