Panasonic Electronic Components

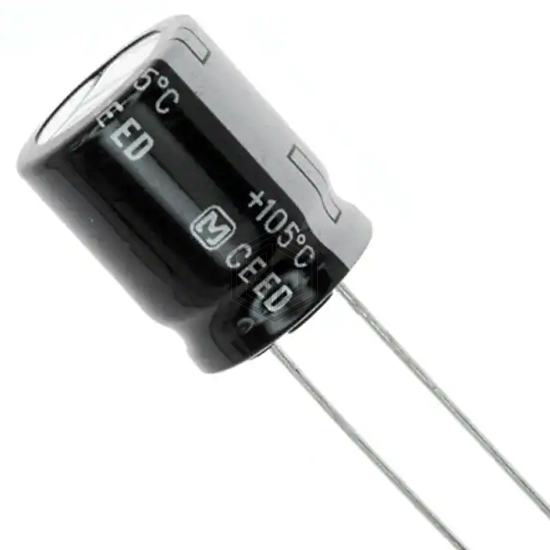

CAP ALUM 22UF 20% 450V RADIAL
EEU-ED2W220S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 3,984
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 272 mA @ 120 Hz |
| Ripple Current @ High Frequency | 680 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LDGH450M226H202S1AA | Lumimax Optoelectronic Technology | CAP ALUM 22UF 20% 450V RADIAL | 97% | View |
| UCA2G220MHD6 | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 91% | View |
| PW2W220MNN1625 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 84% | View |
| UCA2G220MHD1TO | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 80% | View |
| EEU-EE2E220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 250V RADIAL TH | 78% | View |
| VHT22M160 | NTE Electronics, Inc | CAP ALUM 22UF 20% 160V RADIAL | 56% | View |
