Panasonic Electronic Components
CAP ALUM 10UF 20% 350V RADIAL

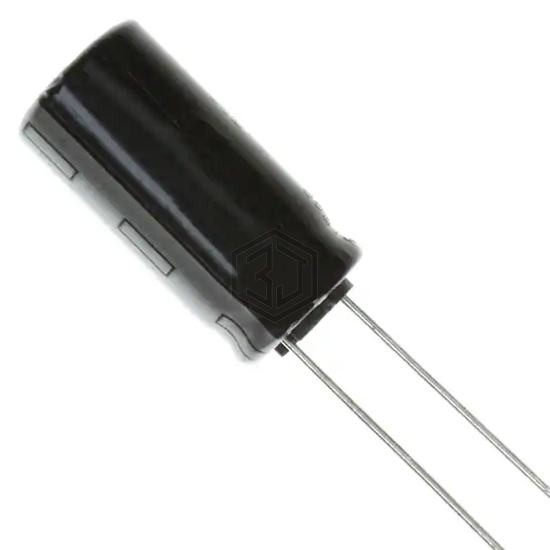

EEU-ED2V100B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 3,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2W100MPDANA | Nichicon | CAP ALUM 10UF 20% 450V RADIAL | 85% | View |
| MALREKV00FE210PG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 450V RADIAL | 85% | View |
| 450BXC10MEFC10X20 | Rubycon | CAP ALUM 10UF 20% 450V RADIAL | 83% | View |
| SEK100M250ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 250V RADIAL | 78% | View |
| UBX2C100MPL1TD | Nichicon | CAP ALUM 10UF 20% 160V RADIAL | 60% | View |
| 100ZLH10MEFCTA6.3X11 | Rubycon | CAP ALUM 10UF 20% 100V RADIAL | 56% | View |
