Panasonic Electronic Components

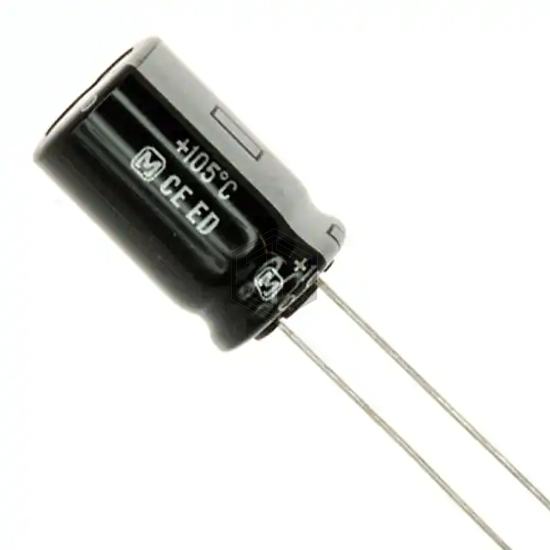

CAP ALUM 68UF 20% 200V RADIAL
EEU-ED2D680B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,618
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 380 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-EB2D680S | Panasonic Electronic Components | CAP ALUM 68UF 20% 200V RADIAL | 92% | View |
| UCY2E680MHD1TO | Nichicon | CAP ALUM 68UF 20% 250V RADIAL | 76% | View |
| MAL212029689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 100V AXIAL | 69% | View |
| EKMM401VSN680MQ20U | United Chemi-Con | CAP ALUM 68UF 20% 400V SNAP | 66% | View |
| MAL205918689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 385V SNAP | 62% | View |
| 672D686H025CD5C | Vishay Sprague | CAP ALUM 68UF 25V RADIAL | 56% | View |
Submit your RFQ for EEU-ED2D680B and get a quote within 24 hours.
