Panasonic Electronic Components
CAP ALUM 68UF 20% 160V RADIAL

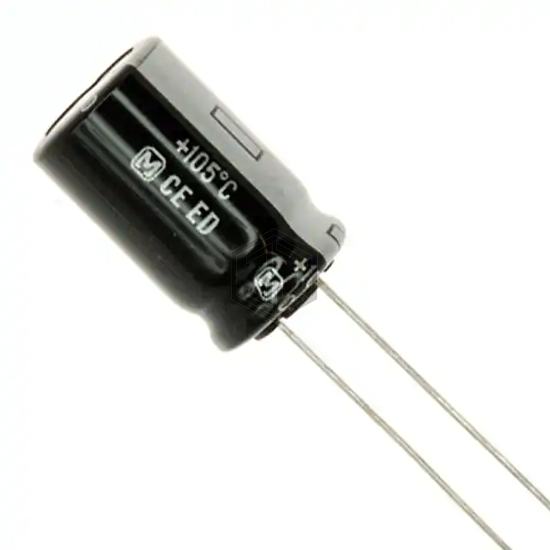

EEU-ED2C680 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 6,960
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 380 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ2C680MHD1TN | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 97% | View |
| PW2G680MNN1825 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
| UPZ2W680MHD | Nichicon | CAP ALUM 68UF 20% 450V RADIAL | 67% | View |
| UPH2G680MHD | Nichicon | CAP ALUM 68UF 20% 400V RADIAL | 67% | View |
| 450MXC68MEFC22X30 | Rubycon | CAP ALUM 68UF 20% 450V SNAP | 65% | View |
| LAK2G680MELA25 | Nichicon | CAP ALUM 68UF 20% 400V SNAP | 60% | View |
Submit your RFQ for EEU-ED2C680 and get a quote within 24 hours.
