Panasonic Electronic Components
CAP ALUM 150UF 20% 160V RADIAL

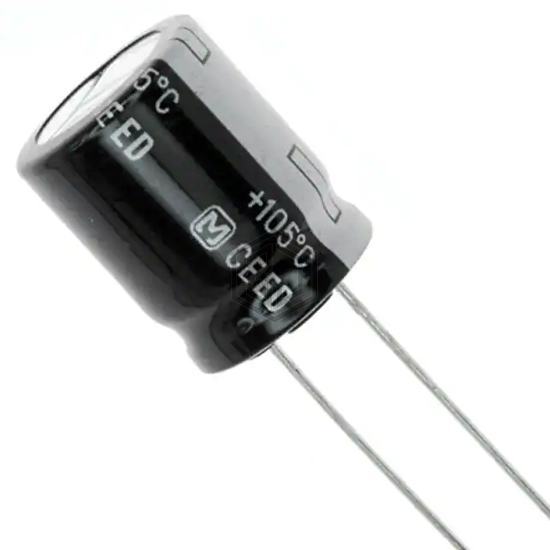

EEU-ED2C151B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 150UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 8,929
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 630 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-EE2D151 | Panasonic Electronic Components | CAP ALUM 150UF 20% 200V RADIAL | 82% | View |
| EKXG201ELL151ML25S | United Chemi-Con | CAP ALUM 150UF 20% 200V RADIAL | 79% | View |
| EKXJ221ELL151MM20S | United Chemi-Con | CAP ALUM 150UF 20% 220V RADIAL | 78% | View |
| LAQ2P151MELZ25 | Nichicon | CAP ALUM 150UF 20% 220V SNAP | 76% | View |
| EEU-FS2A151L | Panasonic Electronic Components | CAP ALUM 150UF 20% 100V RADIAL | 75% | View |
| 400MXG150MEFCSN25X25 | Rubycon | CAP ALUM 150UF 20% 400V SNAP | 66% | View |
Submit your RFQ for EEU-ED2C151B and get a quote within 24 hours.
