Panasonic Electronic Components

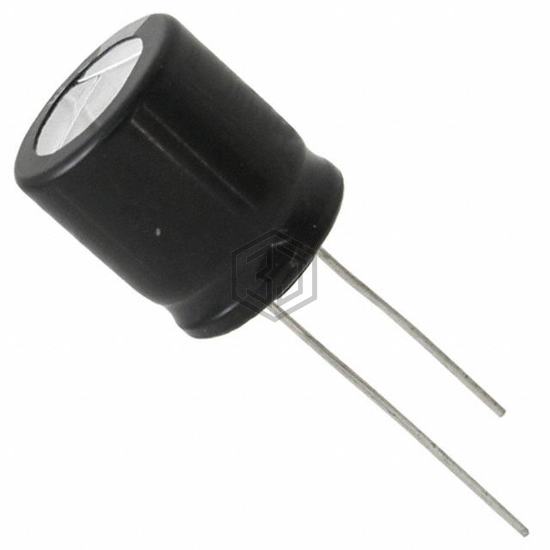

CAP ALUM 220UF 20% 200V RADIAL
EEU-EB2D221 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 2,488
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 929.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.69 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215973221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 250V SNAP | 88% | View |
| 250TXW220MEFR16X35 | Rubycon | CAP ALUM 220UF 20% 250V RAD TH | 87% | View |
| 227LMX400M2CF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 400V SNAP | 74% | View |
| EEU-FM1H221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V RADIAL | 73% | View |
| ELXM421VSN221MQ50S | United Chemi-Con | CAP ALUM 220UF 20% 420V SNAP | 73% | View |
| EKMM401VSN221MR30W | United Chemi-Con | CAP ALUM 220UF 20% 400V SNAP | 73% | View |
