Panasonic Electronic Components
CAP ALUM 220UF 20% 50V RADIAL

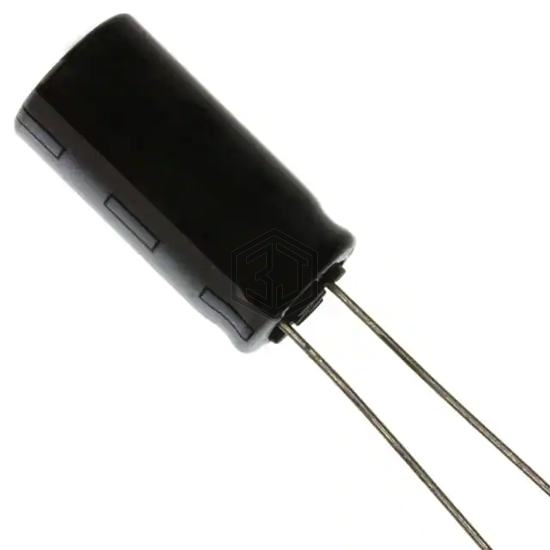

EEU-EB1H221 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,417
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 234 mA @ 120 Hz |
| Ripple Current @ High Frequency | 304.2 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214051221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V RADIAL | 93% | View |
| 672D227H040EK5J | Vishay Sprague | CAP ALUM 220UF 40V RADIAL | 86% | View |
| MAL214268221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 78% | View |
| 10ML220MEFCC88X7 | Rubycon | CAP ALUM 220UF 20% 10V RADIAL | 59% | View |
| MAL215056221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 57% | View |
| EGXL500EC5221MJ20S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for EEU-EB1H221 and get a quote within 24 hours.
