Panasonic Electronic Components

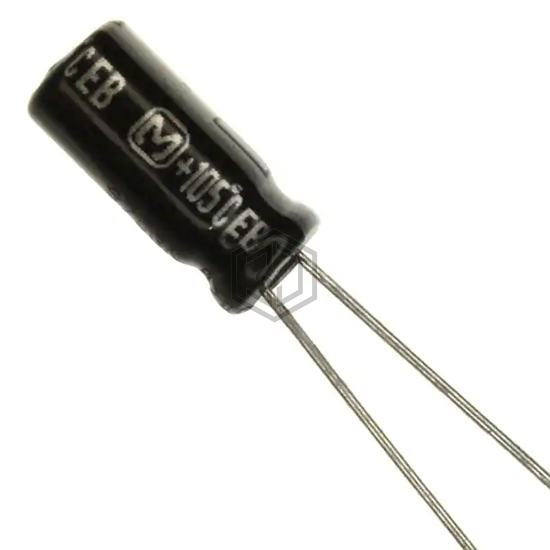

CAP ALUM 22UF 20% 50V RADIAL
EEU-EB1H220SH is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,891
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 39 mA @ 120 Hz |
| Ripple Current @ High Frequency | 50.7 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 511D226M035AA2D | Vishay Sprague | CAP ALUM 22UF 20% 35V RADIAL | 77% | View |
| EEA-GA1A220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V RADIAL | 71% | View |
| MAL213835229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 16V AXIAL | 60% | View |
| ED1V220MPZ0511EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 58% | View |
| 6.3MH522MEFCTZ4X5 | Rubycon | CAP ALUM 22UF 20% 6.3V RADIAL | 54% | View |
| EEU-FC1H220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for EEU-EB1H220SH and get a quote within 24 hours.
