Panasonic Electronic Components

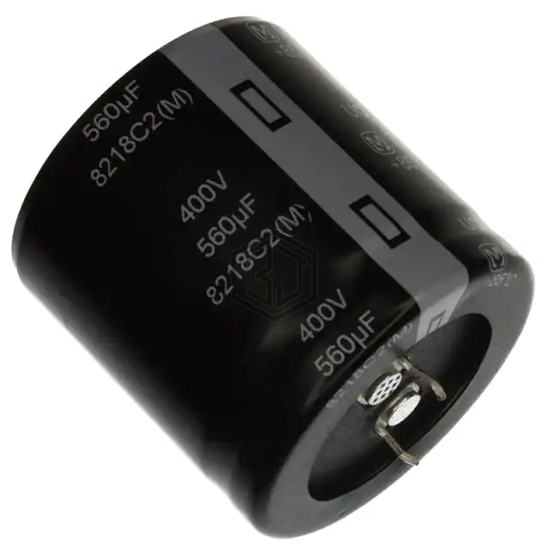

CAP ALUM 560UF 20% 420V SNAP
EET-UQ2S561LA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 9,008
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.82 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.948 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2S561LA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43501A5567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 96% | View |
| MAL209564561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 420V RADIAL | 92% | View |
| B43640F5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 86% | View |
| ELXM351VSN561MA40S | United Chemi-Con | CAP ALUM 560UF 20% 350V SNAP | 79% | View |
| B43254B4567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 350V SNAP | 78% | View |
| LLS2C561MELA | Nichicon | CAP ALUM 560UF 20% 160V SNAP | 68% | View |
Submit your RFQ for EET-UQ2S561LA and get a quote within 24 hours.
