Panasonic Electronic Components
CAP ALUM 560UF 20% 420V SNAP

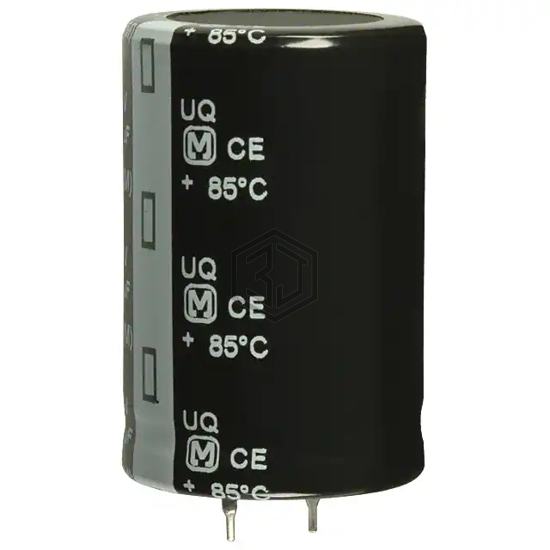

EET-UQ2S561DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 9,726
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.836 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2S561DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ451VSN561MA45W | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 96% | View |
| ESMM451VNN561MA50U | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 95% | View |
| 380LQ561M315J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 315V SNAP | 88% | View |
| B43540G2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 76% | View |
| MLS561M250EB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V FLATPACK | 67% | View |
| VHT560M10 | NTE Electronics, Inc | CAP ALUM 560UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for EET-UQ2S561DA and get a quote within 24 hours.
