Panasonic Electronic Components

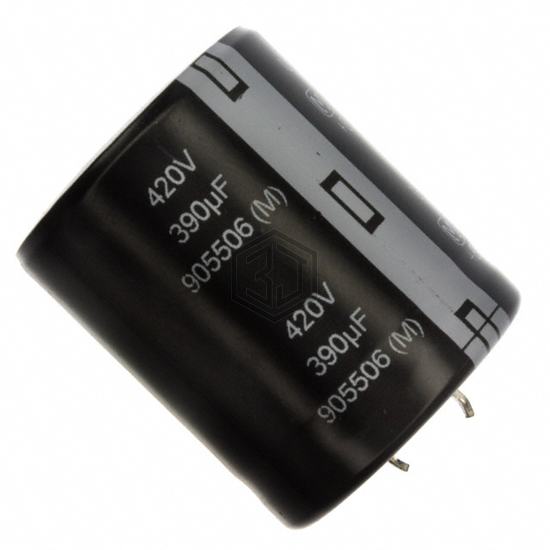

CAP ALUM 390UF 20% 420V SNAP
EET-UQ2S391KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 8,650
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 510mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.27 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.178 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2S391KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43501A5397M82 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 97% | View |
| MAL219816391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 400V SNAP | 95% | View |
| B43547A6397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 500V SNAP | 93% | View |
| B43540B9397M80 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 92% | View |
| B43504A5397M87 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 90% | View |
| B43640B9397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 83% | View |
Submit your RFQ for EET-UQ2S391KA and get a quote within 24 hours.
