Panasonic Electronic Components

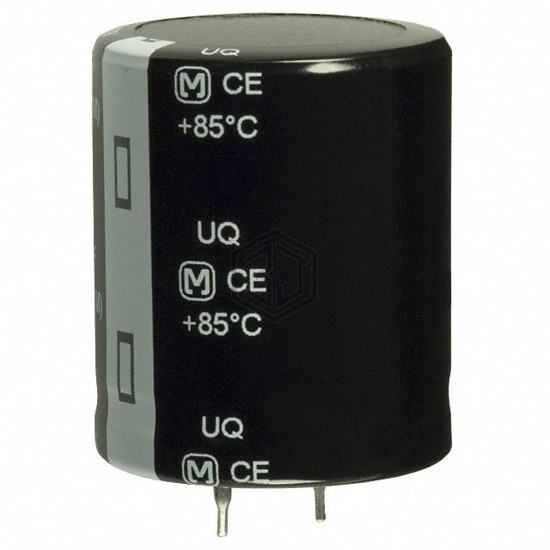

CAP ALUM 390UF 20% 420V SNAP
EET-UQ2S391DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 9,843
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 510mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.17 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.038 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2S391DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LDM2G391MERAGA | Nichicon | CAP ALUM 390UF 20% 400V RADIAL | 98% | View |
| ESMQ451VSN391MA30S | United Chemi-Con | CAP ALUM 390UF 20% 450V SNAP | 96% | View |
| ELXM421VSN391MA45S | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 90% | View |
| ELXS421VSN391MA35S | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 89% | View |
| 380LX391M315A022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 315V SNAP | 87% | View |
| B43601E2397M62 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 250V SNAP | 72% | View |
Submit your RFQ for EET-UQ2S391DA and get a quote within 24 hours.
