Panasonic Electronic Components
CAP ALUM 680UF 20% 400V SNAP

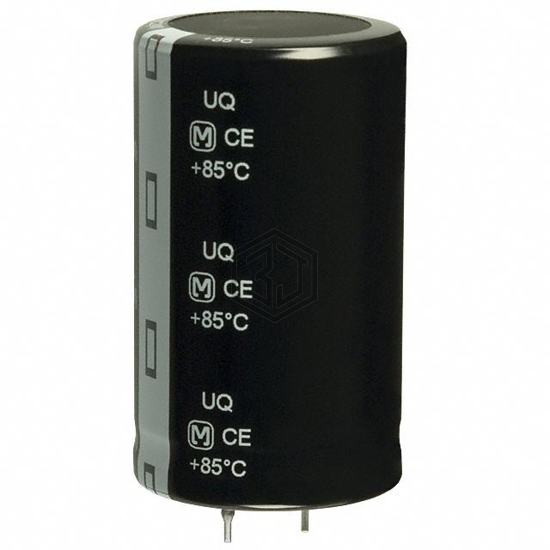

EET-UQ2G681DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 6,891
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 293mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.96 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.144 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2G681DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LQ681M450A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 450V SNAP | 96% | View |
| B43511E9687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 93% | View |
| 350VXH680MEFC35X40 | Rubycon | CAP ALUM 680UF 20% 350V SNAP | 81% | View |
| LGX2E681MELZ50 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 69% | View |
| EGPD800ELL681ML25H | United Chemi-Con | CAP ALUM 680UF 20% 80V RADIAL | 58% | View |
| LDQ2D681MERZGA | Nichicon | CAP ALUM 680UF 20% 200V RADIAL | 56% | View |
