Panasonic Electronic Components
CAP ALUM 470UF 20% 400V SNAP

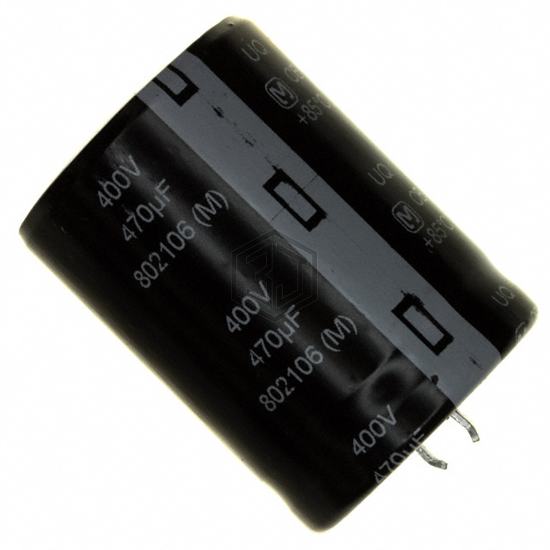

EET-UQ2G471KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 5,129
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 423mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.39 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.346 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2G471KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43501A0477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 420V SNAP | 96% | View |
| 450MXH470MEFCSN30X45 | Rubycon | CAP ALUM 470UF 20% 450V SNAP | 89% | View |
| EKMM451VNN471MA50U | United Chemi-Con | CAP ALUM 470UF 20% 450V SNAP | 85% | View |
| LGL2G471MELB35 | Nichicon | CAP ALUM 470UF 20% 400V SNAP | 78% | View |
| 250MXG470MEFCSN22X40 | Rubycon | CAP ALUM 470UF 20% 250V SNAP | 77% | View |
| 16RX30470M8X16 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for EET-UQ2G471KA and get a quote within 24 hours.
