Panasonic Electronic Components

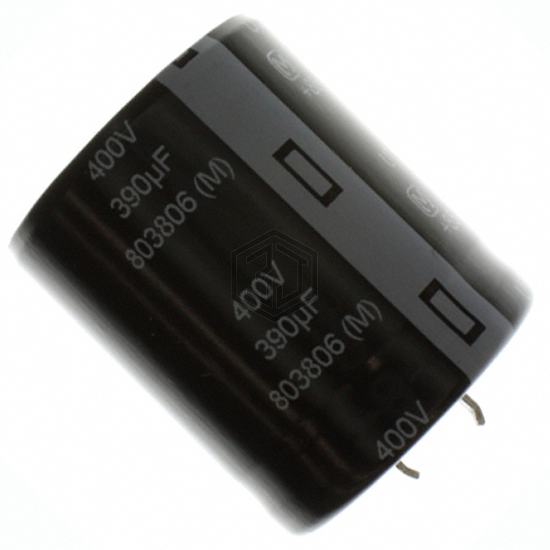

CAP ALUM 390UF 20% 400V SNAP
EET-UQ2G391KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 5,877
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 510mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.13 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.982 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2G391KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL219357391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 450V SNAP | 95% | View |
| B43305C5397M67 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 94% | View |
| 500MXH390MEFCSN30X60 | Rubycon | CAP ALUM 390UF 20% 500V SNAP | 92% | View |
| B43508B5397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 86% | View |
| ALA8DA391DC400 | KEMET | CAP ALUM 390UF 20% 400V SNAP | 83% | View |
| EKMH351VNN391MR45S | United Chemi-Con | CAP ALUM 390UF 20% 350V SNAP | 80% | View |
Submit your RFQ for EET-UQ2G391KA and get a quote within 24 hours.
