Panasonic Electronic Components
CAP ALUM 560UF 20% 200V SNAP

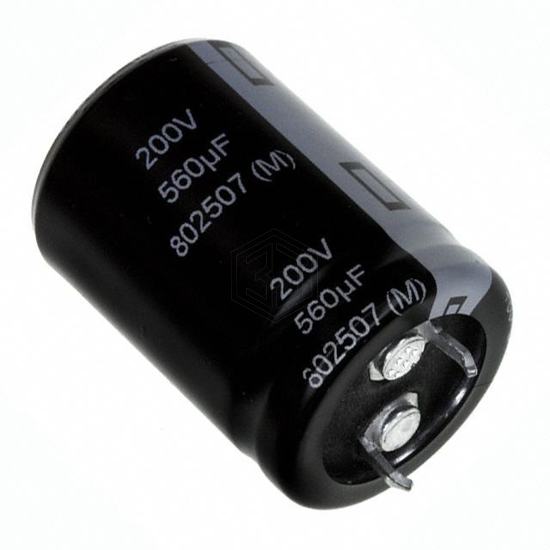

EET-UQ2D561HA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,376
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.402 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2D561HA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LLG2D561MELA25 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 94% | View |
| B43508A2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 84% | View |
| B43504B2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 80% | View |
| 381LX561M180J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 180V SNAP | 74% | View |
| B43644E5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 70% | View |
| B43642B9567M062 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 70% | View |
Submit your RFQ for EET-UQ2D561HA and get a quote within 24 hours.
