Panasonic Electronic Components
CAP ALUM 1000UF 20% 200V SNAP

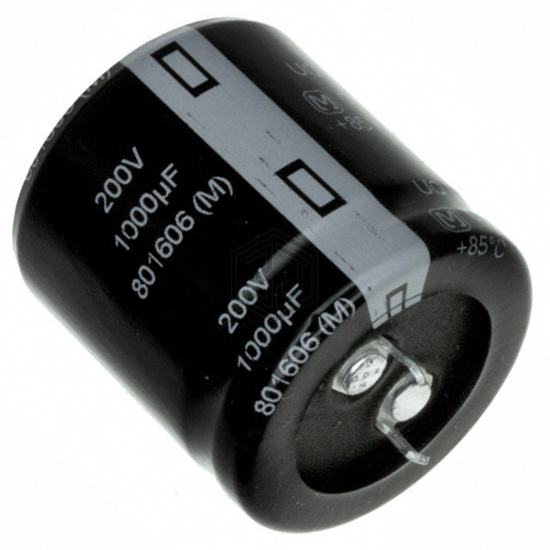

EET-UQ2D102KA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 2,684
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 199mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.55 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
EET-UQ2D102KA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX102M180K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 180V SNAP | 93% | View |
| MAL205253102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 250V RADIAL | 88% | View |
| LPX102M250E4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 250V SNAP | 87% | View |
| 381LQ102M160H042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 160V SNAP | 75% | View |
| MAL209665102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 350V RADIAL | 65% | View |
| VHT1000M35 | NTE Electronics, Inc | CAP ALUM 1000UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for EET-UQ2D102KA and get a quote within 24 hours.
